제품 상세 정보:
결제 및 배송 조건:
|
| 제품 이름: | 마이크로 컴퓨터 제어 단일 무기 전자 유니버설 테스트 기계 톤 kg g k kn lb mm cm 인치 단위 전환 | 용량: | 5,10,20,50,100,200kg |
|---|---|---|---|
| 대안: | 인장 시험기 | 해결: | 1/300,000 |
| 테스트 속도 범위: | 0.05 ~ 500 mm/min | 모터: | 파나소닉 서보 모터 |
| 기준: | ISO 7500-1 ISO 572 ISO 5893 ASTM D638/695/790 등 | ||
| 강조하다: | electronic universal testing machine with microcomputer control,single-armed testing machine with unit switchover,electronic testing machine with tone kg g |
||
| Attribute | Value |
|---|---|
| Product Name | Microcomputer Control Single-Armed Electronic Universal Testing Machine with Tone Kg g Kn Lb mm cm inch Unit Switchover |
| Capacity | 5,10,20,50,100,200KG |
| Alternative | Tensile testing machine |
| Resolution | 1/300,000 |
| Test speed range | 0.05~500 mm/min |
| Motor | Panasonic Servo Motor |
| Standard | ISO 7500-1 ISO 572 ISO 5893 ASTM D638/695/790, etc |

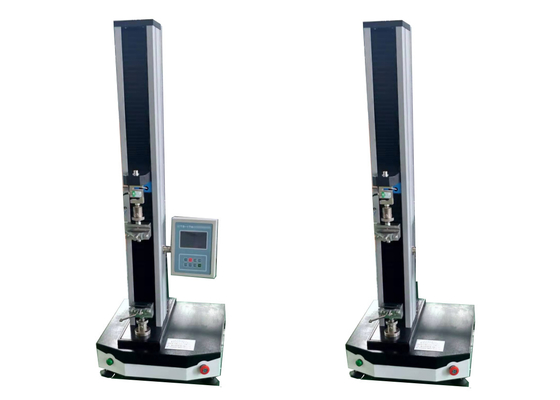

Microcomputer Control Single-Armed Electronic Universal Testing Machine is primarily designed for testing metallic and non-metallic materials in terms of tension, compression, bending, shear, peel, tear, two-point extension, and other mechanical properties. It is applicable to materials such as rubber, plastic, wires and cables, optical fibers and cables, safety belts, leather belt composite materials, plastic profiles, waterproof membranes, steel, copper, profiles, spring steel, bearing steel, stainless steel (and other high-hardness steels), castings, plates, strips, and non-ferrous metal wires.
| Model | XWW-100N/200N/500N/1000N/2000N |
| Type | Door model |
| Max. Load | 100N/200N/500N/1000N/2000N |
| Unit Switchover | Tone,Kg,g,Kn,Lb; mm,cm,inch |
| Accuracy Grade | 0.5% |
| Force-measuring Range | 0.4%~100%FS |
| Force-measuring Accuracy | ≤0.5% |
| Deformation-measuring Range | 2%~100%FS |
| Deformation-measuring Accuracy | 1% |
| Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0.01~500mm/min |
| Displacement Speed Accuracy | ≤ 0.5% |
| Tensile Space | 700mm |
| Compression Space | 900mm (or according to order) |

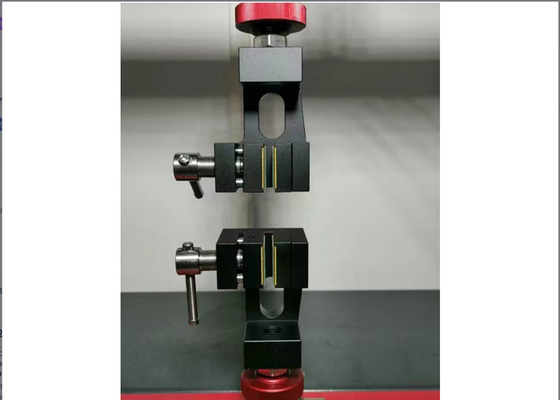

| Clamps | Wedge Grip,Compressing Attachment,Bend accessorises |
| PC System | Equiped with brand computer |
| Power Supply | AC220V |
| Standards | ISO 7500-1 ISO 572 ISO 5893 ASTMD638695790 |
| Weight | 200KG |
A1: An Electronic Universal Testing Machine is a precision instrument designed to evaluate the mechanical properties of materials, including tensile strength, compression strength, modulus of elasticity, and elongation.
A2: An Electronic Universal Testing Machine is capable of testing a diverse range of materials, encompassing metals, plastics, elastomers, and composites.
A3: Electronic Universal Testing Machines boast high accuracy, with a measurement deviation of within ±0.5% relative to the actual value.
A4: An Electronic Universal Testing Machine supports a range of testing types, including tensile testing, compression testing, flexure testing, shear testing, and tear testing.
A5: An Electronic Universal Testing Machine offers a cost-efficient and precise solution for evaluating the mechanical properties of materials. It also features user-friendliness and rapid result delivery.
For the Electronic Universal Testing Machine, packaging will be executed with utmost care and precision, utilizing bubble wrap, foam, and other specialized protective packaging materials to mitigate transit damage. Prior to loading onto a shipping truck, the machine will be securely fastened to a logistics skid to ensure stability during transportation.
The product will be shipped via a reliable, insured freight logistics carrier, safeguarding against potential risks throughout the delivery process.
