제품 상세 정보:
결제 및 배송 조건:
|
| 제품 이름: | 산업 응용 분야를위한 정밀 및 내구성 정밀성 압력 테스트 기계 | 테스트 범위: | 0-100Bar, 0-10MPA |
|---|---|---|---|
| 정확성: | -1%~+2% | 시험 온도 범위: | 10~95°C |
| 엔드 캡: | Φ 6~1800mm | 표시하다: | LCD |
| 검사 곡선: | 압력 시간과 압력 온도 | 안전 보호: | 온도 에 압력 / 위에서 |
| 테스트 모드: | 오토매틱 | 테스트 매체: | 물 |
| 맞춤형 지원: | OEM | ||
| 강조하다: | industrial hydrostatic pressure testing machine,durable hydrostatic pressure tester,precision hydrostatic testing equipment |
||

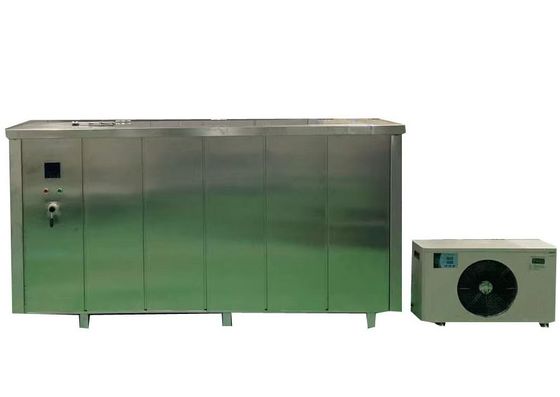

Hydrostatic Testing Machine
The Hydrostatic Testing Machine is fully compliant with the requirements specified in GB/T 6111, ISO 1167-1, GB/T 15560, ASTM D1598, and ASTM D1599 standards. It is specifically designed for conducting hydrostatic pressure tests and bursting tests on various fluid-conveying plastic pipes.
This machine features a simplified structure, high measurement precision, excellent operational stability, and user-friendly operation. It serves as an indispensable testing instrument for quality inspection departments of research institutes and pipe manufacturers alike.

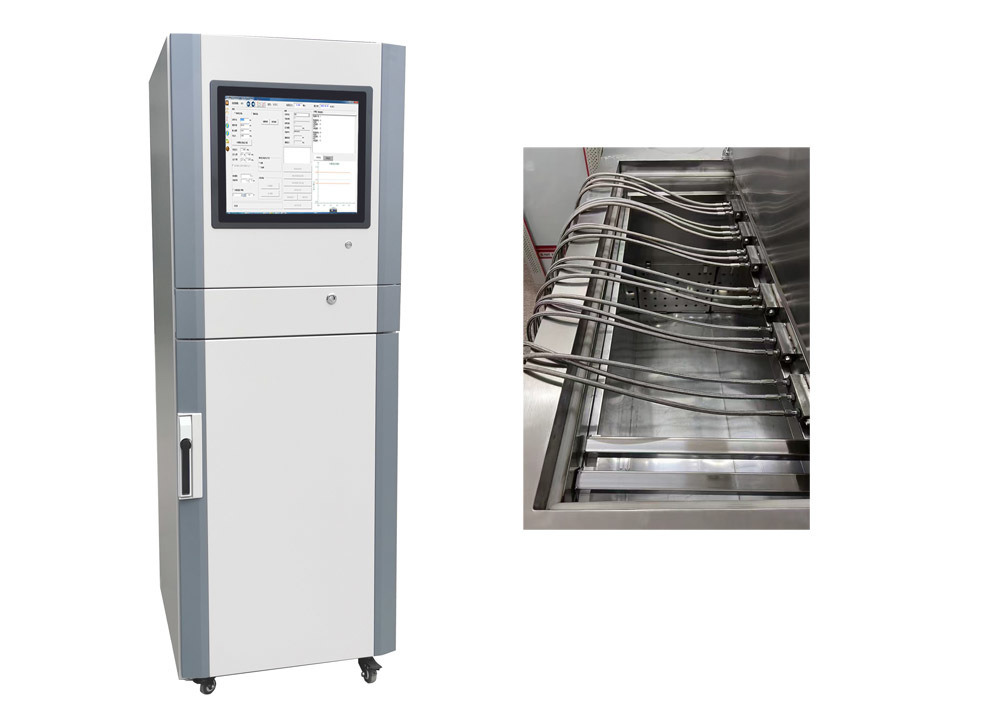

Upon inputting parameters such as pipe ring stress, wall thickness, and average outer diameter into the PC, the system automatically computes the test pressure and transmits the data to the lower computer (MCU embedded system) via the RS232 serial port. The machine then automatically maintains constant pressure on the pipeline: the high-pressure pump generates a high-pressure liquid pressure source, which, after processing by the pressure control system, is delivered through a high-pressure hose to the sample housed in the medium incubator. This enables the pipe to undergo either a long-term hydrostatic test or a burst test.
| Model | XGY-10C |
|---|---|
| Diameter range | Φ6-1800mm |
| Stations | 3, 6, 12, 15, 20, 25, 50, etc can customized |
| Control mode | Micro-control, industrial PC control |
| Display mode | Industrial PC LCD color display |
| Storage mode | PC strorage |
| Print mode | Color printer output |
| Test pressure | Pressure range: 100Bar, 10MPa |
| Control accuracy | ±1% |
| Display resolution | 0.1Bar, 0.01MPa |
| Working range | 5%~100%FS |
| Indication error | ±1% |
| Test Timer | Timer range: 0~10000h Timer accuracy: ±0.1% Timer resolution: 1s |
| Power | 380V 50Hz three-phase four-wire 1.2KW |
| End caps models | from Φ6 to 1800mm |
| Water tank size | accoard to the pipe size |
| Temperature range | 10-95℃ |
| Dimensions (three stations) | 740×640×1720(mm)or others |
We are dedicated to delivering premium customer service and remain readily accessible to address any inquiries or concerns regarding the equipment's operation, maintenance, or performance.
