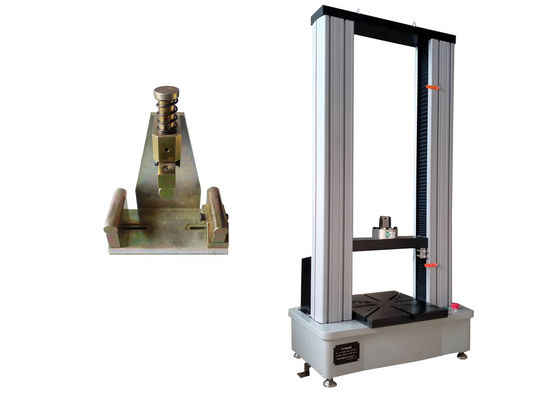

Versatile Computer Control Double-Armed Electronic Universal Testing Machine for Waterproof Materials and Film Industry
Description:
The XWW series Computer Control Double-Armed Electronic Universal Testing Machine is widely utilized across sectors including rubber, plastics, PVC pipes, boards, metal wires, cables, waterproof materials, and films. By integrating various accessories, it can perform a comprehensive range of mechanical tests such as tensile, compression, bending, shear, peel, and tear tests, among others.
This machine serves as a standard testing instrument for laboratories and quality control departments across industries, enabling precise material quality evaluation and mechanical property analysis.
Maintechnical parameter of Computer Control Double-Armed Electronic Universal Testing Machine:
| Model |
XWW |
| Maximum load |
50KN, 100 KN (optional) |
| Accurate |
1 grade /0.5 grade |
| Effective measuring range |
Force from 1% to 100% (1 grade) / from 0.4% to 100% (0.5 grade) |
| Measuring accuracy |
The value ±1% / the value±0.5% |
| Tester resolution |
Max load 1/200000, constant the resolution |
| Load sensor |
Basic configuration sensor max load: one |
| Effective testing width |
500mm (can be widened according to customers requirement ) |
| Effective tensile space |
700mm (can be increased the height according to customers requirement) |
| Testing speed |
From 0.001 to 500mm/min |
| Accruacy of displacement measurement |
Tolerance: ±0.5% / tolerance:±0.2% |
| Deformation of measured system according to the requirements |
Min span:10mm, Max range of deformation 800mm
Extended deformation span : 25mm, 50mm, 100mm, range of deformation 5mm, 10mm, 25mm
|
| Accuracy of measured deformation |
Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation) |
| Safety |
Electronic-limit protection |
| Testing platform moving device |
Arbitrarily set |
| Return Back |
Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection |
Overload 10%, automatic protection |
| Fixture |
A set of tensile clamp |
| Machine size |
700*590*2000mm (L*W*H) |
| Motor |
Panasonic AC servo motor and drive |
| Power supply |
220V,50HZ or according to the requirement |
| Power |
1.5KW or 3KW (depending on different demand of force, using different motor) |
| Weight |
600 Kg |
|
Microcomputer Control Single-Armed Electronic Universal Testing Machine:
It automatically calculates stress, elongation rate (when equipped with an extensometer), tensile strength, and modulus of elasticity, while also compiling statistical results automatically. It can automatically record the maximum point, fracture point, values at designated points, and elongation rate.
Dynamic curves during the testing process are displayed in real time and data is processed via computer. Post-test, re-analysis and editing can be conducted by enlarging curves through the graphics processing module, with test reports available for printing. The product performance meets internationally advanced standards.
System configuration:
1 Machine main unit
1 1 AC servo motor, driver 1 set
1.2 Speed reduce system 1set
1. 3 Load cell 1pc
1. 4 Precision precision ball screw 2sets
1. 5 Control board 1set
2 Servo control system 1set
3 Gear system 1set
4 PC 1set
5 Inkjet color printer 1set

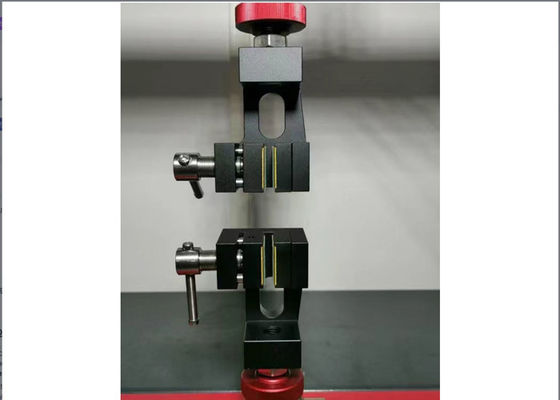

7 Tensile test accessories 1set
Compression accessorises 1 set
Bend accessorises 1 set
8 Extensometer 1 set
9 Software installation CD 1set
10 Technical documents 1set
including : Instruction Manual
Manual of the Software
Certificate
11 Tool kit 1 set
