Accurate and Durable Hydrostatic Pressure Testing Machine for Precise Pressure Measurement
Applications:
Introduction to the Hydrostatic Pressure & Bursting Testing Machine
The Hydrostatic Pressure & Bursting Testing Machine is engineered for conducting instant bursting tests and long-term pressure tests on plastic pipes for fluid transport—specifically for measuring the failure time of thermoplastic pipes under constant pressure.

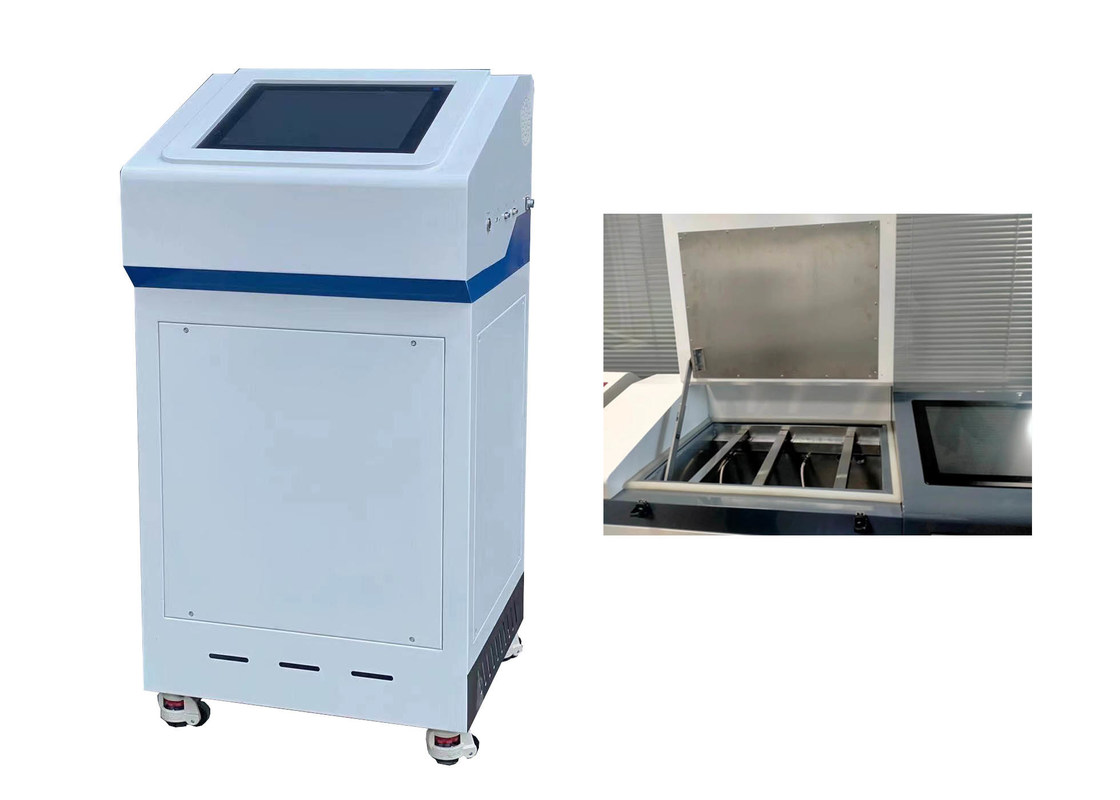

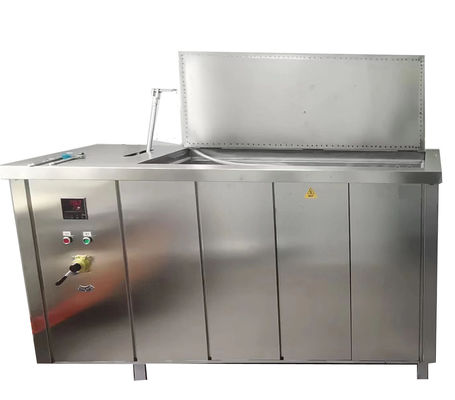

This instrument comprises a pressure control main unit, a constant temperature tank, and end caps. Featuring high precision, an elegant design, a streamlined structure, excellent stability, and user-friendly operation, it serves as an essential testing instrument for research institutes, quality inspection departments, and pipe manufacturers.
Product Description:
Introduction to Our Hydrostatic Pressure Testing Machine
Our Hydrostatic Pressure Testing Machine operates on the principle of parameter input: users enter pipe-related parameters (including ring stress, wall thickness, and average outer diameter) into the PC, which then automatically calculates the required test pressure. The computed data is subsequently transmitted to the lower computer (MCU embedded system) via the RS232 serial port. This workflow enables precise and accurate pressure testing, thus ensuring reliable and consistent test results across all operations.
The Hydrostatic Pressure Testing Machine is furnished with pressure-time and pressure-temperature test curves, which facilitate real-time monitoring of test progress and results. It covers a pressure range of up to 160 Bar (equivalent to 16 MPa), making it suitable for diverse application scenarios. Additionally, it offers a test temperature range of 10~95℃, enabling testing of products designed for service in extreme temperature conditions.
This equipment falls under the product category of Hydrostatic Pressure Testing Machines. It serves as an indispensable tool for industries requiring reliable and accurate pressure testing, including but not limited to the plumbing, oil and gas, chemical processing, and manufacturing sectors. With its user-friendly interface and precise data calculation capabilities,The static pressure testing machine is an important equipment that enterprises use to ensure the quality and safety of their pipeline products.
Features:
1. Product Name: Hydrostatic Pressure Testing Machine
2. Principle: Input the parameters such as ring stress, wall thickness and average outer diameter of the pipe on the PC, the system will automatically calculate the test pressure, and the data will be transmitted to the lower computer (MCU embedded system) through the RS232 serial port.
3. Customized Support: OEM
4. Model: XGY-16C
5. Temperature range: 15-95℃
Meet Standards:
ISO1167-2006, ASTMD1598-2004, ASTMD1599, ISO9080, CJ/T108, ASTMF1335.
Technical Parameters:
| Model |
XGY-16C |
| Diameter range |
Φ16-630mm |
| Stations |
3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC strorage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range |
0.1-16MPa |
| Control accuracy |
±1% |
| Display resolution |
0.01MPa |
| Working range |
5%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range |
0~10000h |
| Timer accuracy |
±0.1% |
| Timer resolution |
1s |
| Power |
380V 50Hz three-phase four-wire 1.5KW |
| end caps models |
from Φ16 to 630mm |
| Water tank size |
accoard to the pipe size |
| Temperature range |
15-95℃ |
| Dimensions (three stations) |
715×625×1700(mm)or others
|
Support and Services:
Technical Support and Service for Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)
We offer comprehensive professional technical support for Hydrostatic Pressure Testing Machines. Our team of seasoned technical support specialists is well-equipped to deliver the following services:
- On-site machine installation and commissioning: Ensures precise setup, calibration, and initial operational verification to guarantee the machine meets standard testing requirements from the start.
- Professional troubleshooting and targeted technical consultation: Provides efficient solutions for equipment malfunctions (e.g., pressure control anomalies, system errors) and in-depth guidance on test protocol optimization, minimizing unplanned downtime.
- Timely repair and proactive preventive maintenance: Covers corrective repairs for faulty components and regular preventive upkeep (e.g., seal inspection, solenoid valve maintenance, sensor calibration) to extend equipment lifespan and maintain stable performance.
- Supply of genuine spare parts and high-quality consumables: Delivers 100% compatible original parts and reliable consumables, avoiding mismatches that could compromise testing accuracy or machine safety.
- Regular software updates and functional upgrades: Keeps the machine’s control software aligned with the latest industry standards (e.g., GB/T 6111, ASTM D1598) and adds new features as needed to adapt to evolving testing demands.
We are dedicated to delivering premium customer service and remain readily accessible to address any inquiries regarding machine operation, maintenance, or performance. Should you require assistance, please feel free to contact us at your convenience.
FAQ:
Q1: What is the brand name of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)?
A1: The official brand name of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine) is JHH, with its manufacturing base situated in Beijing, China.
Q2: What is the purpose of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)?
A2: The Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine) is specifically engineered to assess the hydrostatic strength and bursting strength of plastic pipes—critical performance metrics for validating the durability and safety of plastic pipes in fluid transport scenarios.
Q3: What types of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine is applicable for testing plastic pipes and composite pipes, including but not limited to PP-R, PP-B, PP-A, PVC, PE, and PE-X variants.
Q4: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine boasts a measurement accuracy of within 0.1% of the full-scale reading, ensuring the reliability, traceability, and compliance of test data with industry quality standards.
Q5: What is the maximum pressure that the Hydrostatic Pressure Testing Machine can test?
A5: The Hydrostatic Pressure Testing Machine can reach a maximum test pressure of up to 10 MPa (equivalent to 100 bar or 1,450 psi), which covers the pressure requirements of most standard hydrostatic and bursting tests for plastic pipes.
