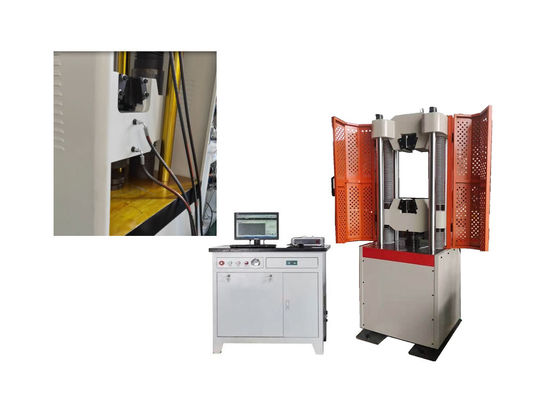

ISO Standard Servo Hydraulic Testing Machine

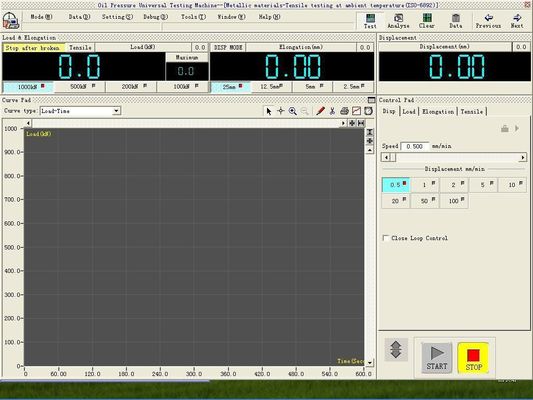

This universal testing machine is equipped with a computer-controlled hydraulic loading system and large-format LCD display, enabling user-friendly, intuitive operation with streamlined workflows.
Application
- Engineered for mechanical property testing of metal materials, supporting core test modes including tension, compression, bending, shear, and customized mechanical tests
- Flexibly adapted for testing non-metallic materials (wood, concrete, cement, rubber) with optional accessories
- Ideal for testing high-toughness and high-hardness materials under extreme high-load conditions
- Delivers stable performance and reliable test data for rigorous material evaluation
Price Advantage
Our vertical integration through in-house R&D and manufacturing enables superior cost-performance without compromising reliability. The machine's low failure rate minimizes maintenance costs while enhancing operational efficiency.
This exceptional cost-performance ratio delivers tangible benefits, balancing premium quality with competitive pricing to maximize your investment returns.
Standards Compliance
ISO 6934 BS4449, ASTM C39, ASTM A370, ASTM E4, ASTM E8, ASTME9, ASTMA615, ISO6892, ISO7438, ISO7500-1, ISO 15630 EN10002-4, GB/T228-2002, GB 16491-2008, HGT3844-2008 QBT 11130-1991, HGT 3849-2008, GB6349-1986, ASTM C165, EN826, EN1606, EN1607, EN12430, etc.
Host Features
- Integrated system with automated control, measurement, data acquisition, display, and result processing
- Cylinder-under-main-engine configuration with high-precision oil pump and PC-based servo controller
- Multi-channel closed-loop control for full automation with exceptional stability
- Superior professionalism, high reliability, and easy upgradability
- Continuous enhancement capability to match evolving industry standards
Main Technical Parameters
| Model |
WAW-1000D |
| Max. test force (kN) |
1000KN |
| Structure |
Four columns two ball screws, oil cylinder down-setting type |
| Load range |
2%-100% |
| Middle Beam elevating speed (mm/min) |
200 mm/min |
| Max. Tensile space (mm) |
700mm |
| Max. Compression space (mm) |
600mm |
| Piston stroke (mm) |
200mm |
| Stranded wire clamping range |
Φ13-40mm |
| Flat sample clamping range |
0-30mm |
| Power total |
3.2KW |
| Compression plate size |
Φ160mm |
| Bending support roller distance |
300mm |
