| 제품명: | 금속 폴리머 세라믹 및 복합 재료에 대한 다양한 테스트 기능을 제공하는 드롭 해머 테스트 장비 | 테스트 유형: | 낙중 시험 |
|---|---|---|---|
| 테스트 범위: | 0-300J | 표시하다: | LCD |
| 제어 모드: | 오토매틱 | 맥스. 키: | 2000mm |
| 최소 키: | 40mm | 전원공급장치: | AC220V/50Hz |
| 샘플 직경 범위: | Φ10-630mm | ||
| 강조하다: | drop hammer test equipment for metals,versatile drop hammer tester,drop hammer test machine for composites |
||

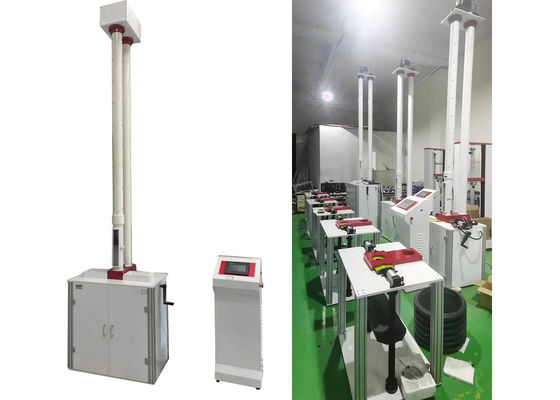

The Drop Hammer Pipe Falling Weight Impact Tester is specifically engineered for evaluating the external impact resistance of thermoplastic pipes, polymer test specimens, and related components. It is fully compatible with a wide range of pipe products, including PVC-U pipes, PVC-C pipes, PP pipes, PE pipes, communication pipelines, and other similar polymer-based pipe systems.
| Property | Value |
|---|---|
| Display | LCD |
| Product Name | Drop Hammer Pipe Falling Weight Impact Tester |
| Test Range | 0-300J |
| Max. Drop Weight | 15kg |
| Test Type | Drop Hammer Test |
| Pipe diameter range | Φ10-630mm |
| Max. Height | 2000mm |
| Min. Height | 40mm |
| Accuracy | ±0.5% |
| Dimension | 740×710×3850mm |
| Test method | Method-A: Passage Method; Method-B: Gradient Method |
| Power Supply | AC220V/50Hz |
The Dropping Hammer Impact Tester serves as a widely recognized precision testing instrument specifically engineered for evaluating the external impact strength of plastic pipes, plastic sheets, and non-metallic materials. It is a core tool for quality control, material qualification, and performance verification in the plastics, construction, and manufacturing industries.
For plastic pipes, the tester provides comprehensive impact testing coverage for a diverse range of products, including but not limited to: PVC-U water supply pipes, low-pressure water supply pipes, core-layer foam pipes, double-wall corrugated pipes, Carat pipes, steel belt-reinforced pipes, PE water supply pipes, MPP power pipes, hollow wall winding pipes, and CPVC power pipes.
For batch or continuous extrusion production processes, the tester enables the accurate determination of the product's True Impact Rate (TIR) by impacting the predefined area of test specimens with a drop hammer of specified mass and dimensions from a designated height.
This test method offers exceptional flexibility to accommodate the technical requirements of diverse products--achieved by adjusting the drop hammer mass, impact height, or both parameters.
Per international testing standards, the maximum allowable TIR value is specified as 10%.
The Drop Hammer Test Equipment is packaged in export-grade reinforced wooden crates to ensure maximum protection during transit. Each crate is meticulously packed with the main unit, detailed operation manual, auxiliary parts, and all standard accessories required for installation and initial use.
Additionally, standardized labeling is affixed to the crate, clearly indicating the equipment name, model number, serial number, and handling instructions--facilitating streamlined identification and safe logistics management.
We provide comprehensive documentation to support smooth international shipping, including commercial invoice, detailed packing list, and other mandatory documents compliant with destination country/region regulations (e.g., customs declarations, certificate of origin if applicable).
Shipping costs are calculated based on the destination location and selected shipping method (e.g., sea freight, air freight). We collaborate with reputable logistics partners to ensure timely, secure delivery while optimizing cost-efficiency for our clients.
A1: The Drop Hammer Test Equipment is a precision impact testing instrument developed and manufactured by JHH, with its production base located in Beijing, China. It is specifically engineered to evaluate the impact resistance of materials and products--an essential indicator for structural integrity assessment.
A2: The primary purpose of the equipment is to accurately assess the impact resistance of target materials and products. This critical testing data supports product quality control, material qualification, and reliability verification, ensuring compliance with industry standards and application requirements.
A3: The equipment is widely applicable for impact testing of various pipes (including but not limited to PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure transmission pipes, core-layer foam pipes, double-wall corrugated pipes, and PE water supply pipes) and is fully compatible with rigid plastic sheets.
A4: The Drop Hammer Test Equipment features a high measurement accuracy of ±0.5%, meeting international testing standard requirements and ensuring reliable, repeatable test results for quality assurance.
A5: The equipment delivers a maximum testing energy of 300 J, which comprehensively covers the impact testing needs of most industrial pipes and rigid plastic products in commercial and engineering scenarios.
