| 제품명: | 사용자 친화적인 재료 테스트를 위해 푸시 버튼 패널로 작동되는 유압 그리핑 시스템을 갖춘 서보 유압 시험기 | 모델: | WAW-1000D |
|---|---|---|---|
| 구조: | 6 행 | 제어 방법: | 설명서 & 자동장치 |
| Max.load: | 1000KN | 맥스. 인장 시험 우주: | 800(사용자 정의 가능) |
| Max.Compression 시험 스페이스: | 650mm (사용자 정의 가능) | 로드 범위: | ±1%~100%FS |
| 전자 연장 미터: | 10/50 | 클램핑 방법: | 내장 수압 클램핑 |
| 강조하다: | Servo hydraulic testing machine with hydraulic gripping,Push button operated servo hydraulic tester,User friendly material testing machine |
||

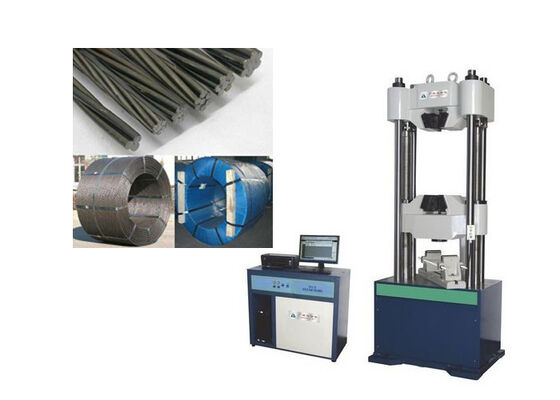

Robust frame with exceptional strength and rigidity for tension tests on round and flat steel specimens, plus comprehensive concrete mechanical property tests including compression, transverse, splitting, and elastic modulus tests.
Facilitates convenient specimen insertion with easily detachable jaws and grips. Hydraulic gripping system integrates with user-friendly push-button control panel.
Utilizes high-precision load cell for superior accuracy across entire load range, including reliable performance at lower measurement scales.

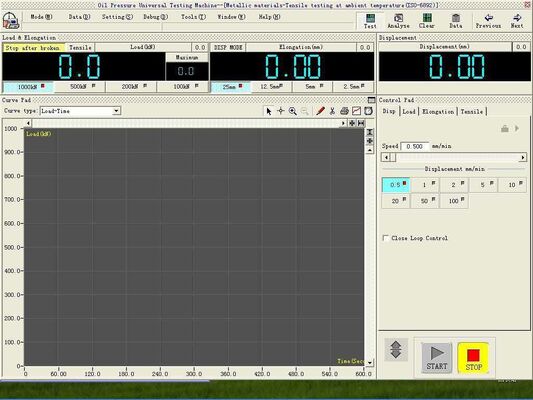

Complete range of specialized accessories supports multi-functional testing needs. All tests are PC-controlled for fully automatic execution with remote control capabilities.
| Parameter | Specification |
|---|---|
| Model | WAW-1000D |
| Structure | 6 Column (Four Columns Two Ball Screws) |
| Control Way | Constant Stress, Constant Deformation, Constant Displacement Three Closed Loop Control and Program Control |
| Max. Load | 1000 KN (100 TONS) |
| Load Accuracy | ≤±1% (Optional: ≤± 0.5%) |
| Load Range | 2%~100%FS (20KN~2000KN) (Optional: 0.4%-100%FS (4KN~2000KN)) |
| Load Resolution | 1/300000 |
| Deformation Measurement Range | 2%~100%FS |
| Deformation Accuracy | ≤±1% (Optional: ≤± 0.5%) |
| Displacement Resolution | 0.01mm |
| Displacement Error | ≤±0.5% |
| Max. Piston Stroke | 250mm |
| Max. Piston Moving Speed | 0-50mm/min Stepless Speed Adjusting |
| Crossbeams Lifting Speed | 200mm/min |
| Max. Tension Test Space | 800mm (Can Be Customized) |
| Max. Compression Test Space | 650mm (Can Be Customized) |
| Center Spacing Between Columns | 600mm |
| Column Effective Spacing | 530mm |
| Clamping Method | Hydraulic Automatic Clamp |
| Round Specimen Clamping Range | Φ13-Φ26mm, Φ26-Φ40mm, Φ40-Φ60mm |
| Flat Specimen Clamping Range | 0-30mm (Optional: 30-60mm) |
| Flat Specimen Clamping Width | 110mm |
| Flat Specimen Clamping Length | 110mm |
| Compression Plate Size | Φ160mm |
| Bending Roller Distance | 450mm |
| Width Of Bending Rollers | 120mm |
