제품 상세 정보:
결제 및 배송 조건:
|
| 제품명: | 재료 및 제품 안전 규정 준수를 보장하기 위해 포괄적인 충격 테스트 프로토콜을 지원하는 드롭 해머 테스트 장비 | 테스트 유형: | 낙중 시험 |
|---|---|---|---|
| 테스트 범위: | 0-300J | 떨어뜨리는 망치 품질: | 0.5kg-15kg |
| 제어 모드: | 오토매틱 | 맥스. 키: | 2000mm |
| 최소 키: | 20mm | 전원공급장치: | AC220V/50HZ |
| 강조하다: | drop hammer test equipment with warranty,impact testing protocols for material safety,drop hammer equipment for product compliance |
||

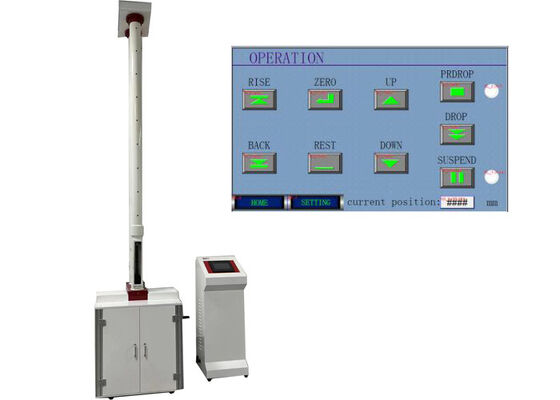

The XJL series pipeline drop hammer impact testing machine is specifically engineered for determining the impact toughness of thermoplastic pipelines, including PVC-U, PVC-C, PP, PE, and underground communication pipes. This essential testing instrument evaluates the impact resistance performance of pipeline materials for manufacturing enterprises, building materials sectors, and scientific research organizations.

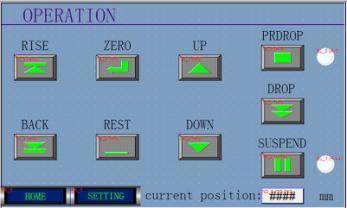

This testing machine integrates a secondary impact prevention mechanism and utilizes an AC servo system as its core drive unit. It delivers exceptional performance with high hammerhead speed, excellent positioning accuracy, and superior testing efficiency.
Compliance with standards ZB N72 026 ISO 3127 GB / T 18477 ISO4422.
| Model | XJL-300D |
| Ambient temperature | 10℃-35℃ |
| Drop hammer quality | 0.5kg-6.5kg |
| Hammer diameter | D25mm, D90mm and other |
| Height of the fall | 0mm-2000mm, error≤±2mm |
| Diameter of the sample | Φ10mm-Φ450mm |
| Deviation of impact center from fixture center | ≤2mm |
| V-type supporting | 120° |
| Power source | 220VAC±10% |
| Outline dimension | 715mm×700mm×3700mm |
| Net weight | 310kg |
We provide end-to-end technical support and comprehensive after-sales services throughout the entire equipment lifecycle. Our specialized engineering team offers professional guidance for installation, commissioning, routine maintenance, technical troubleshooting, and precision calibration.
The equipment is securely packaged in export-grade wooden crates engineered for international transit durability. Each crate includes the test equipment, comprehensive operation manual, and all accompanying spare parts.
Shipping Arrangements:
The Drop Hammer Test Equipment is a specialized testing instrument designed and manufactured by JHH, Beijing, China. It evaluates the impact resistance performance of materials and products through standardized drop hammer impact tests.
The primary purpose is to assess the impact resistance of target materials or finished products, verifying quality compliance, ensuring structural reliability, and supporting quality control throughout production.
It is widely suitable for various pipes including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, transmission pipes, core-layer foam pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic sheets.
The equipment delivers high-precision testing with measurement accuracy of up to ±0.5%, ensuring reliable and repeatable test results.
The maximum testing energy is 300 Joules (J), capable of covering the impact testing requirements of most industrial pipes and rigid plastic materials.
